Stainless Steel Floating Ball Valve, 1 IN, 1000 PSI, API 608
We Provide Stainless Steel Floating Ball Valves, Low-Pressure Stainless Steel One-Piece Ball Valves, API 608, 1 Inch, DN25, 1/4-4 IN, 1000 PSI.
Categories
- Ball Valves
Tags
- 1 Inch Ball Valve , DN50 Ball Valves , Floating Ball Valves
Detail Information
Low-Pressure Stainless Steel 1 Piece Type Floating Ball Valve
Design Standard: API 608
Body Material: Stainless Steel
Nominal Diameter: 1 Inch, DN25
Pressure: 1000 psi
End Connection: Thread, BSPT, NPT
Face To Face: Factory Standard
Test And Inspection: API 598
1/4" - 4" stainless steel 1 Piece Ball valve
The One Piece Ball valve as the name suggests is made out of one body piece, unlike the 2 and 3 pieces. This means the valve cannot be taken apart for cleaning. The advantage is that the valve will be low-cost and robust. As a result of the valve body is one piece, a smaller ball has to be used leading to a reduced port, more commonly called a reduced bore. This means that flow is reduced through the valve since the ball bore is one size smaller than the pipe size.
1. Threaded Ports FNPT by FNPT for standard Pipe Connection
2. Reduced/Standard Port Ball Valve
3. Stem is Blow Out Proof
4. Pressure Rating 1000 PSI, Suitable for Standard Uses
5. PTFE Seat and Seal, suitable for High Heat and Chemical Applications
6. Sizes Start from 1/4 - 2 Inch
A One-piece ball valve is known for its low cost and Robust design. Like our other threaded ball valves, the 1 piece comes with female NPT threads on both ports. Commonly used in standard applications where a study valve is required and a reduced flow is not important to the application. Our 1-piece valves are made with quality grade 316 stainless steel, designed with a reduced port, pressure rated at 1000 PSI WOG (Water, Oil, Gas).
Design Standard: API 608
Body Material: Stainless Steel
Nominal Diameter: 1 Inch, DN25
Pressure: 1000 psi
End Connection: Thread, BSPT, NPT
Face To Face: Factory Standard
Test And Inspection: API 598
1/4" - 4" stainless steel 1 Piece Ball valve
The One Piece Ball valve as the name suggests is made out of one body piece, unlike the 2 and 3 pieces. This means the valve cannot be taken apart for cleaning. The advantage is that the valve will be low-cost and robust. As a result of the valve body is one piece, a smaller ball has to be used leading to a reduced port, more commonly called a reduced bore. This means that flow is reduced through the valve since the ball bore is one size smaller than the pipe size.
1. Threaded Ports FNPT by FNPT for standard Pipe Connection
2. Reduced/Standard Port Ball Valve
3. Stem is Blow Out Proof
4. Pressure Rating 1000 PSI, Suitable for Standard Uses
5. PTFE Seat and Seal, suitable for High Heat and Chemical Applications
6. Sizes Start from 1/4 - 2 Inch
A One-piece ball valve is known for its low cost and Robust design. Like our other threaded ball valves, the 1 piece comes with female NPT threads on both ports. Commonly used in standard applications where a study valve is required and a reduced flow is not important to the application. Our 1-piece valves are made with quality grade 316 stainless steel, designed with a reduced port, pressure rated at 1000 PSI WOG (Water, Oil, Gas).

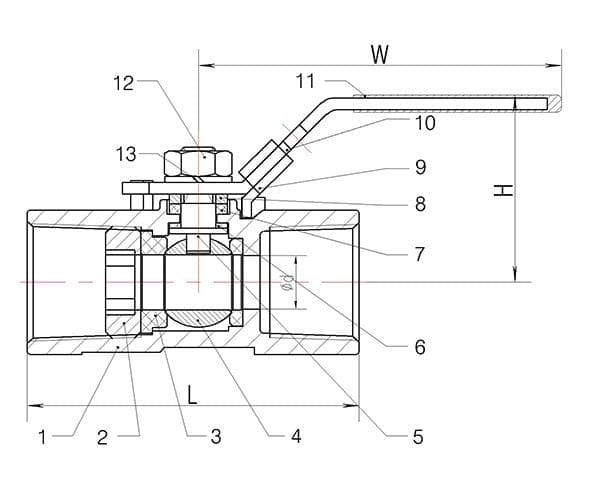

SIZE | фd | L | H | W | N.M | KGS | |
1/4'' | DN6 | 5 | 40 | 32 | 68 | 12 | 0.07 |
3/8" | DN10 | 7 | 45 | 33 | 68 | 12 | 0.13 |
1/2" | DN15 | 9 | 56 | 42 | 95 | 13 | 0.17 |
3/4" | DN20 | 12.5 | 59 | 45 | 95 | 20 | 0.25 |
1" | DN25 | 15 | 71 | 48 | 95 | 38 | 0.42 |
1-1/4" | DN32 | 20 | 76 | 58 | 106 | 50 | 0.68 |
1-1/2" | DN40 | 25 | 84 | 67 | 128 | 72 | 0.85 |
2" | DN50 | 32 | 99 | 74 | 130 | 90 | 1.39 |
2-1/2" | DN65 | 38 | 110 | 85 | 170 | 360 | 1.98 |
3" | DN80 | 50 | 132 | 85 | 170 | 600 | 3.6 |
4" | DN100 | 64 | 180 | 121.5 | 225 | 950 | 7.47 |
