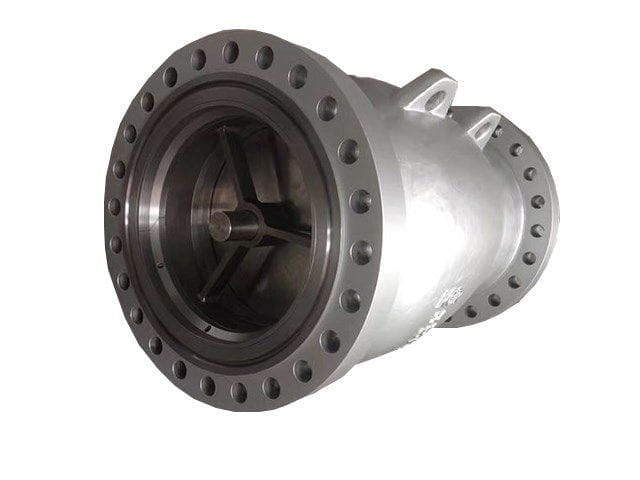

Válvula de retención de flujo axial ASTM A351, API 6D, 8 pulgadas, 150 LB
ASTM A351 Axial Flow Check Valve Provider: Axial Flow Type Silent Check Valves, ASTM A351, API 6D, ASME B16.34, 8 Inch, DN200, Class 150 LB, PN20, RF.
Categorías
- Revisar válvulas
Etiquetas
- Válvulas de retención API 6D , Válvulas de retención Clase 150 LB , Válvulas de retención ASME B16.34
Detalles
Axial Flow Type Silent Check Valve
Brand: VERVO
Item: Axial Flow Type Check Valve
Model number: H71W-150LB-8INCH
Design Standard: API 6D, ASME B16.34
Body Material: ASTM A351
Nominal Diameter: 8 Inch, DN200, 200MM
Pressure: Class 150 LB, PN20
End Connection: RF Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Temperature: -46℃ - 325℃
Feature: Nozzle Check Valve, Non-Slam Check Valve, Axial flow, Low-pressure drop, Horizontal/Vertical installation, Maintenance Free,
Product Range
Product: Axial Flow Type Check Valve
Nominal diameter: 2 - 40 Inch (50mm-1000mm)
Operating temperature: -196℃ - 593℃
Operating pressure: Class 150-2500 LB
Main material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,ASTM A217 C5, ASTM A217 C12, ASTM A217 C12A, ASTM A217 CA15, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A351 CN3MN, ASTM A351 CK3MCUN, ASTM A351 CN7M, ASTM A352 LCB, ASTM A352 LCC, ASTM A494 CW-6MC, ASTM A494 CU5MCuC, ASTM A494 M35-1, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASME B148 C95800, ASME B148 C95500, etc.
Design standard: API 6D, ASME B16.34
Certification: ISO 9001, ISO 14001, ISO 18001, TS, CE, API
Structural length: ASME B16.10
Connecting end: ASME B16.5, ASME B16.25, GB 9113, GB 12224
Test standard: API 598, ISO 5208, JB/T9092, GB/T13927
Operation method: The valve clack is automatically opened and closed under medium force.
Application fields: Water, steam, petroleum, natural gas, etc.
Brand: VERVO
Item: Axial Flow Type Check Valve
Model number: H71W-150LB-8INCH
Design Standard: API 6D, ASME B16.34
Body Material: ASTM A351
Nominal Diameter: 8 Inch, DN200, 200MM
Pressure: Class 150 LB, PN20
End Connection: RF Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Temperature: -46℃ - 325℃
Feature: Nozzle Check Valve, Non-Slam Check Valve, Axial flow, Low-pressure drop, Horizontal/Vertical installation, Maintenance Free,
Product Range
Product: Axial Flow Type Check Valve
Nominal diameter: 2 - 40 Inch (50mm-1000mm)
Operating temperature: -196℃ - 593℃
Operating pressure: Class 150-2500 LB
Main material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,ASTM A217 C5, ASTM A217 C12, ASTM A217 C12A, ASTM A217 CA15, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A351 CN3MN, ASTM A351 CK3MCUN, ASTM A351 CN7M, ASTM A352 LCB, ASTM A352 LCC, ASTM A494 CW-6MC, ASTM A494 CU5MCuC, ASTM A494 M35-1, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASME B148 C95800, ASME B148 C95500, etc.
Design standard: API 6D, ASME B16.34
Certification: ISO 9001, ISO 14001, ISO 18001, TS, CE, API
Structural length: ASME B16.10
Connecting end: ASME B16.5, ASME B16.25, GB 9113, GB 12224
Test standard: API 598, ISO 5208, JB/T9092, GB/T13927
Operation method: The valve clack is automatically opened and closed under medium force.
Application fields: Water, steam, petroleum, natural gas, etc.
